Material of transmission joint
| No. |
Name |
Quantity |
Material |
| 1 |
Cover |
1 |
QT400-15, Q235A, ZG230-450, 20 |
| 2 |
Body |
1 |
QT400-15, Q235A, ZG230-450, 20 |
| 3 |
Gasket |
1 |
NBR |
| 4 |
Limit short pipe |
1 |
Q235A, 20, 16Mn |
| 5 |
Nut |
5n |
Q235A, 20, 1Cr18Ni9Ti |
| 6 |
Stud |
n |
Q235A, 35, 1Cr18Ni9Ti |

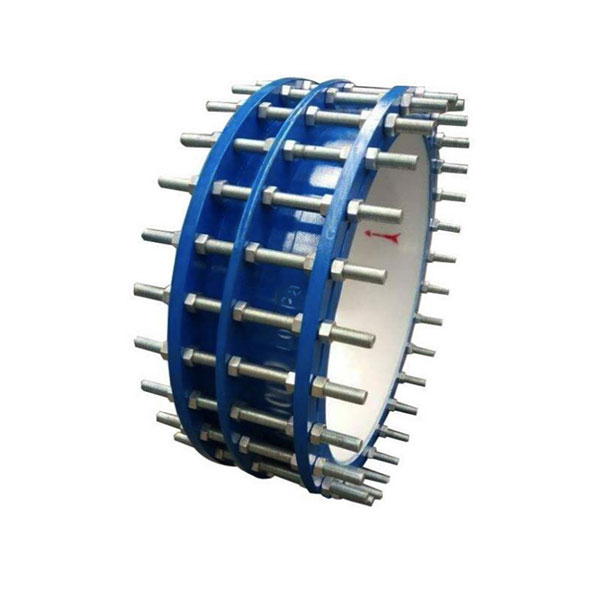

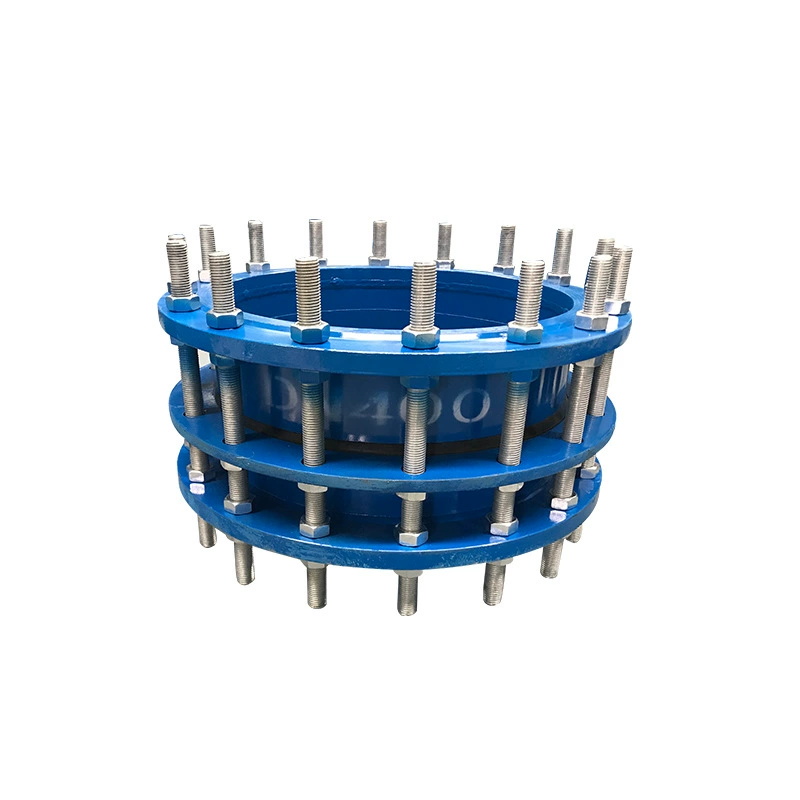

Introduce of transmission expansion joint
C2f type double flange loose sleeve transmission joint is a new product connecting pumps, valves, pipes and other equipment with pipes. They are connected by full bolts to form a whole, with a certain amount of displacement, which is convenient for installation. It can withstand the axial pressure of the pipeline. In this way, it can be adjusted according to the on-site installation size during installation and maintenance, which not only improves the working efficiency, but also plays a certain role in protecting the pipeline equipment such as pumps and valves.
Specification double flange expansion joint
| Nominal Diameter DN |
External diameter of pipe |
Overall dimension |
| Dw |
L |
△L |
| 65 |
76 |
200 |
40 |
| 80 |
89 |
| 100 |
114 |
| 125 |
140 |
| 150 |
168 |
| 200 |
219 |
| 250 |
273 |
| 300 |
325 |
220 |
50 |
| 350 |
377 |
| 400 |
426 |
| 450 |
480 |
| 500 |
530 |
| 600 |
630 |
240 |
| 700 |
720 |
| 800 |
820 |
350 |
60 |
| 900 |
920 |
| 1000 |
1020 |
370 |
| 1200 |
1220 |
| 1400 |
1420 |
| 1600 |
1620 |
380 |
| 1800 |
1820 |
| 2000 |
2020 |
400 |
| 2200 |
2220 |
| 2400 |
2420 |
| 2600 |
2620 |
450 |
80 |
| 2800 |
2820 |
| 3000 |
3020 |
| 3200 |
3220 |
