Tube: Black color, oil-resistant synthetic rubber
Reinforcement: One single layer of fibre braided
Cover: Black color, oil, abrasion, and weather-resistant synthetic rubber
Temperature Range: -40℃ to +121℃
Product Description

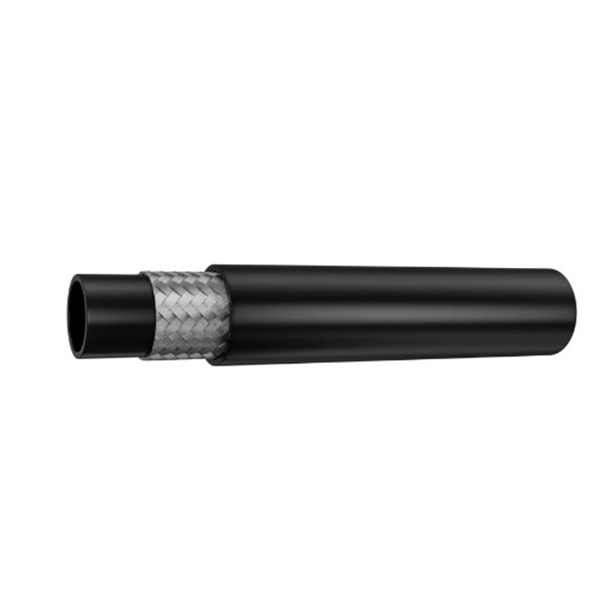

SAE 100 R6 textile-reinforced hydraulic hose is mainly used for low-pressure applications to convey petroleum and water-based hydraulic fluids. It is formed with an inner tube, reinforcement, and cover. The tube comprises synthetic rubber with excellent resistance to oil, abrasion, and corrosion, which helps the hose deliver hydraulic fluids or oils effectively. The reinforcement is covered with one layer of braided fiber, which makes the hose possible to work in low-pressure environments. The cover comprises synthetic rubber resistant to weather, aging, ozone, UV light, etc.
Features And Benefits
Able to withstand oil, weather, aging, corrosion, ozone, abrasion, etc.
High-quality synthetic rubber covered with braided fiber
Highly flexible and durable to use for longer service life
Exceeds the requirements of SAE 100 R6 AT
Rubber Hydraulic Hose Application
Mainly designed for oil delivery machinery in low-pressure conditions to convey petroleum and water-based hydraulic fluids.
Technical Data Sheet
|
DN |
Hose ID |
Hose O.D |
Max. Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
|||
|
inch |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
|
|
5 |
3/16″ |
4.8 |
11.1 |
3.5 |
510 |
14 |
2030 |
50 |
|
6 |
1/4″ |
6.4 |
12.6 |
2.8 |
400 |
11 |
1600 |
65 |
|
8 |
5/16″ |
7.9 |
14.3 |
2.8 |
400 |
11 |
1600 |
75 |
|
10 |
3/8″ |
9.5 |
15.9 |
2.8 |
400 |
11 |
1600 |
75 |
|
13 |
1/2″ |
12.7 |
19.8 |
2.8 |
400 |
11 |
1600 |
100 |
|
16 |
5/8″ |
15.9 |
23.0 |
2.4 |
350 |
10 |
1450 |
125 |
|
19 |
3/4″ |
19.0 |
26.6 |
2.1 |
300 |
8.3 |
1200 |
140 |
