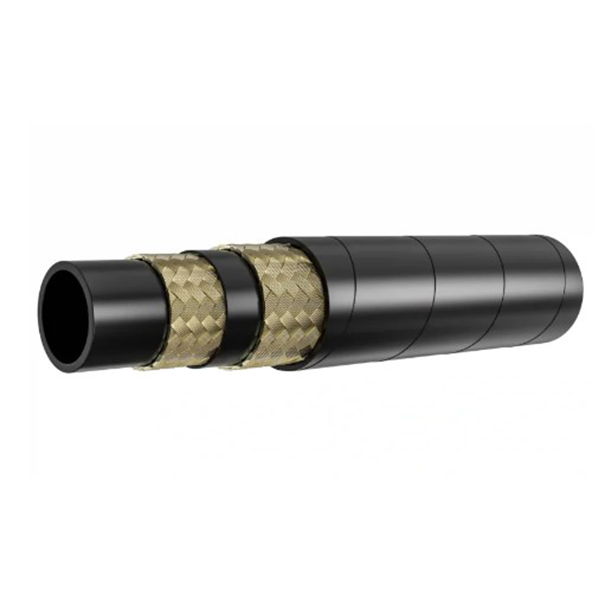

Inner Tube: black color, seamless and oil-resistant synthetic rubber Reinforcement: two layers of high tensile steel wire reinforced Cover: high-quality synthetic rubber with oil, weather, and abrasion resistance Surface: wrapped or smooth surface is available Temperature range: -40℃ – +100℃ Maximum working pressure: 5800 psi Product Description Steel wire reinforced hydraulic hose SAE 100 R16 is suitable for high-pressure hydraulic applications in agriculture, construction, and other heavy machinery. It has a tighter bending radius, which makes it easier to install in narrow spaces. It consists of an inner tube, reinforcement, and cover. The tube is made from oil-resistant synthetic rubber, which makes the hose effective in conveying fluids or oils. It is reinforced with twin or double high tensile steel wire, which makes the hose function well under high-pressure environments and extensive temperature ranges. The cover is made from high-quality synthetic rubber, which makes the hose weather, aging, abrasion, corrosion, and ozone resistant. Features And Benefits Resistant to oil, weather, aging, corrosion, abrasion, ozone, etc. Able to handle extreme temperatures from -40℃ to +100℃ Designed for hydraulic working environments in high pressure Meeting or exceeding all performance requirements of SAE 100R16 Hydraulic Rubber Hose Applications Hydraulic hose SAE 100 R16 is designed for various hydraulic fluids delivery, including petroleum-based and water-based hydraulic fluids, lubrication oils, oil emulsion, etc. Technical Data Sheet

DN	Hose I.D		Hose O.D.	Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius
	inch	mm	mm	Mpa	Psi	Mpa	Psi	mm
6	1/4″	6.4	13.4	40	5800	160	23200	50
8	5/16″	7.9	15	35	5075	140	20300	55
10	3/8″	9.5	17.4	33.0	4785	130	18850	65
13	1/2″	12.7	20.6	27.5	3990	110	15950	90
16	5/8″	15.9	23.8	25.0	3625	100	14500	100
19	3/4″	19.0	27.8	21.5	3120	86	12470	120
25	1″	25.4	35.9	16.5	2390	66	9570	150
