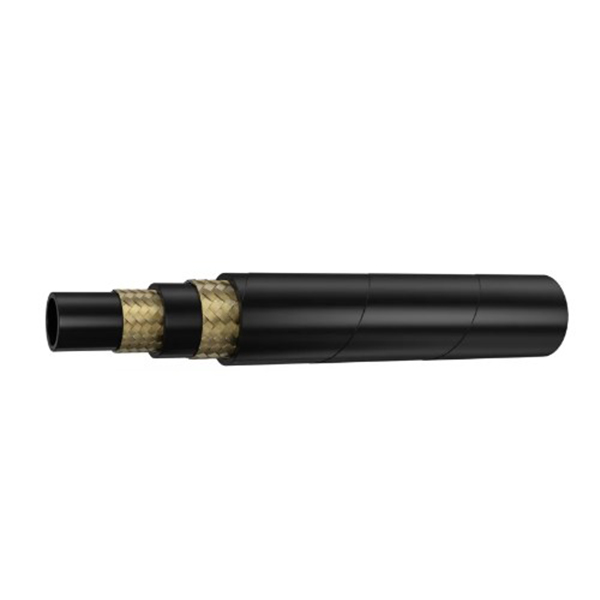

Inner Tube: Black color, oil-proof synthetic rubber Reinforcement Layer: Two layers of high tensile braided steel wire, solid construction Outer Cover: Black color, synthetic rubber, weather and abrasion resistant Surface: wrapped or smooth surface Temperature Range: -40℃ – +120℃ Product Description The hydraulic rubber hose is designed to convey the hydraulic oil fluids through the tube made from oil-resistant synthetic rubber. The flexible hydraulic hose has an inner tube, a high-tensile reinforcement layer, and an outer synthetic cover. The oil-resistant tube is an effective channel to transfer oils or fluids between different components to form a hydraulic circuit. The reinforcement layer is a high-tensile braided steel wire, which can work under high pressure and prevent wear and tear. The outer cover is a synthetic rubber, which has excellent resistance to weather, abrasion, aging, corrosion, ozone, UV, etc. Therefore, it is highly durable to provide a longer service life. Features And Benefits Oil, weather, corrosion resistance, and high tensile strength It has extensive temperature ranges from -40°C to +120°C Able to withstand high pressure and harsh working environments. It complies with stringent industry standards such as REACH and RoHS. Hydraulic Rubber Hose Application Suitable for various applications in industry and agriculture fields, such as agriculture tractors, self-discharging trucks, and hydraulic equipment. Technical Data Sheet

DN	Hose ID		Hose O.D	Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius
	inch	mm	mm	Mpa	Psi	Mpa	Psi	mm
5	3/16″	4.8	13.4	45.0	6525	180	26100	90
6	1/4″	6.4	15.0	40.0	5800	160	23200	100
8	5/16″	7.9	16.6	36.0	5250	140	20300	115
10	3/8″	9.5	19.0	33.1	4800	132	19140	130
13	1/2″	12.7	22.2	27.6	4000	110	15950	180
16	5/8″	15.9	25.4	25.0	3630	100	14500	200
19	3/4″	19.0	29.3	21.5	3120	85	12300	240
25	1″	25.4	38.0	16.5	2400	65	9430	300
32	1 1/4″	31.8	44.5	12.5	1820	50	7250	420
38	1 1/2″	38.1	54.6	9.0	1310	36	5220	500
51	2″	50.8	67.3	8.0	1160	32	4640	630
