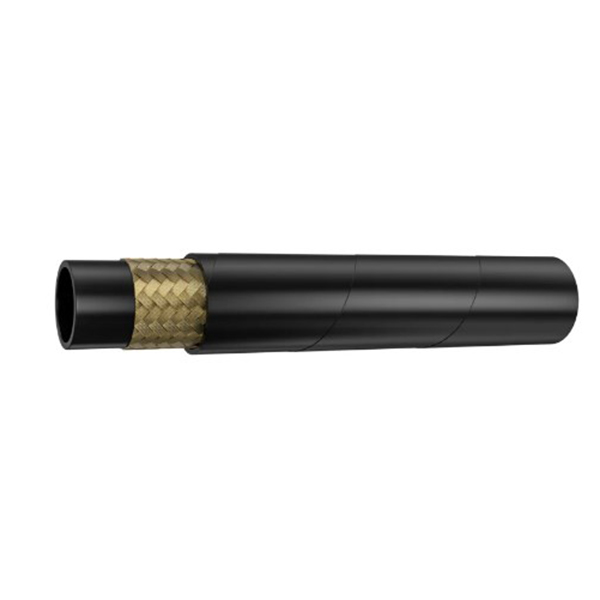

Inner Tube: One layer of oil-proof synthetic nitrile rubber
Reinforcement: One single layer of high tensile braided steel wire
Cover: High quality synthetic rubber with abrasion and weather resistance
Surface: wrapped surface or smooth surface is available
Temperature Range: -40℃ – +100℃ (-40℉ – +212℉)
Color: Black
Product Description
EN 857 1SC is very similar to its counterpart EN 853 1SN steel wire reinforced hydraulic hose in the product structure. The difference between the two hoses is that EN 857 1SC has a smaller outside diameter. It is ideal for hydraulic systems or oil lines with narrow and restricted installation space. The hose is an inner tube made from oil-resistant synthetic rubber, reinforced by one layer of high tensile steel wire, and covered with synthetic rubber with weather, abrasion, and oil resistance. Therefore, The hose is durable and robust, lasting longer service life.
Features And Benefits
Compact and lightweight for easier installation and extended service life
Excellent resistance to oil, weather, abrasion, aging, ozone, etc.
Meets the EN 857 1SC specification
Hydraulic Rubber Hose Applications
The hose mainly transfers petroleum and water-based hydraulic fluids for agriculture and forestry industries, building and construction, mining, and other hydraulic systems.
Technical Data Sheet
|
DN
|
Hose ID
|
Hose O.D
|
Max. Working Pressure
|
Min. Burst Pressure
|
Min. Bend Radius
|
|
inch
|
mm
|
mm
|
Mpa
|
Psi
|
Mpa
|
Psi
|
mm
|
|
6
|
1/4″
|
6.4
|
12.5
|
30
|
4350
|
120
|
17400
|
75
|
|
8
|
5/16″
|
7.9
|
14.0
|
27.5
|
3980
|
110
|
15950
|
80
|
|
10
|
3/8″
|
9.5
|
16.5
|
22.5
|
3260
|
90
|
13050
|
90
|
|
13
|
1/2″
|
12.7
|
19.8
|
20
|
2900
|
80
|
11600
|
127
|
|
16
|
5/8″
|
15.9
|
23.0
|
15
|
2180
|
60
|
8700
|
150
|
|
19
|
3/4″
|
19.1
|
26.7
|
15
|
2180
|
50
|
7250
|
180
|
|
25
|
1″
|
25.4
|
34.9
|
11
|
1600
|
45
|
6530
|
230
|
