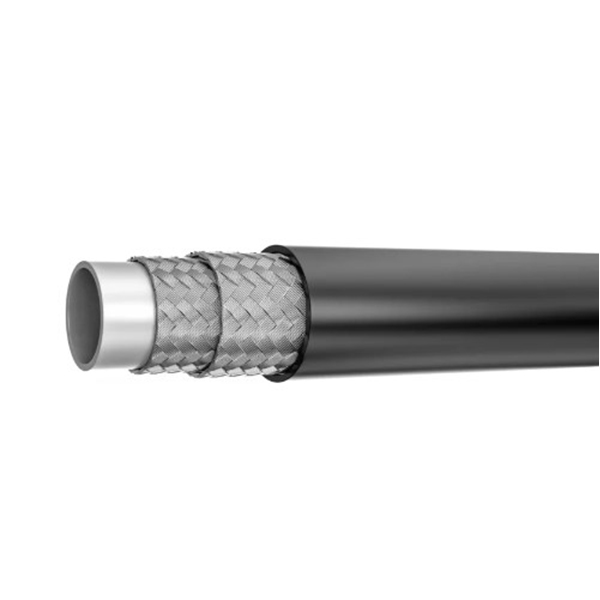

Tube: oil-resistant thermoplastic nylon Reinforcement: two layers of synthetic fiber Cover: nylon or thermoplastic with high flexibility Temperature Range: -40℃ – +100℃ Minimum bend radius: 25mm Product Description Hydraulic Rubber Hose SAE100 R8 is designed to deliver petroleum-based and synthetic hydraulic fluids in high-pressure conditions. It is widely used in non-conductive applications, such as blowout preventers, lubrication lines, and construction machinery. It is composed of the inner tube, reinforcement, and outer cover. The inner tube is a white oil-resistant thermoplastic layer, the reinforcement comprises two layers of synthetic rubber, and the outer cover is made from high-quality thermoplastic with oil, abrasion, and weather resistance. Features And Benefits Excellent resistance to oil, weather, aging, abrasion, etc. Non-conductive Tight bend radius Flexible and lightweight Hydraulic Rubber Hose Applications Mainly used for paint machines, engineering machinery, agriculture machine, mining, cooling, and hydraulic control system. Technical Data Sheet

DN	HOSE ID		HOSE O.D.	Max.Working Pressure		Min.Burst Pressure		Min Bend Radius
	Inch	Mm	Mm	Mpa	Psi	Mpa	PsI	mm
5	3/16″	4.8	13.1	35	5075	140	20300	90
6	1/4″	6.4	15.9	35	5075	140	20300	100
10	3/8″	9.5	19.4	28	4060	112	16240	125
13	1/2″	12.7	22.7	24.5	3550	98	14210	180
16	5/8″	16	25	19.2	2780	76.8	11140	205
19	3/4″	19	29	15.7	2280	62.8	9100	240
25	1″	25	34	14	2030	56	8120	300
32	1 1/4″	32	40	7	1100	28	4400	320
38	1 1/2″	38	47	6	900	24	3600	350
51	2″	50	62	5	800	20	3200	380
