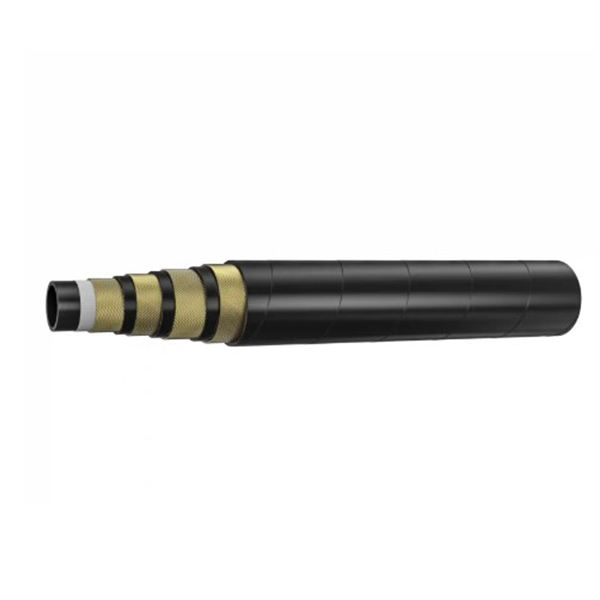

Inner Tube: Black color, nitrile synthetic rubber with oil resistance
Reinforcement: Four layers of spiraled high tensile steel wire
Outer Cover: Black color, synthetic rubber with weather, abrasion, and ozone resistance
Working Temperature: -55℃ – +120℃
Product Description
Rubber Hydraulic Hose SAE 100 R15 is designed to work under high pressure and high impulse strength conditions. It is constructed with the inner tube, reinforcement, and outer cover and meets the standard of SAE 100R115 and the performance requirements of EN856 4SP.
Features And Benefits
Oil, abrasion, ozone, and weather resistant
Capable of working under high pressure and high-impact strength
Meets all requirements of SAE 100R15 and EN 856 4SP (-6, -8, -10, and -12), EN856 4SH (-12, -16, and -20)
Rubber Hydraulic Hose Applications
Hydraulic hose SAE 100 R15 mainly conveys petroleum and water-based fluids. It is also widely popular in harvesting, logging, injection mold machine, construction, mining, agriculture, and oil field equipment.
Technical Data Sheet
|
DN |
Hose I.D |
Hose O.D |
Max. Working Pressure |
Min. Burst Pressure |
Min. Bend Radius |
|||
|
inch |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
|
|
10 |
3/8″ |
9.5 |
23.3 |
42 |
6090 |
168 |
24360 |
150 |
|
13 |
1/2″ |
12.7 |
26.8 |
42 |
6090 |
168 |
24360 |
200 |
|
19 |
3/4″ |
19.1 |
33 |
42 |
6090 |
168 |
24360 |
265 |
|
25 |
1″ |
25.4 |
39.2 |
42 |
6090 |
168 |
24360 |
330 |
|
32 |
1-1/4″ |
31.8 |
49.0 |
42 |
6090 |
168 |
24360 |
445 |
|
38 |
1-1/2″ |
38 |
57.8 |
42 |
6090 |
168 |
24360 |
530 |
