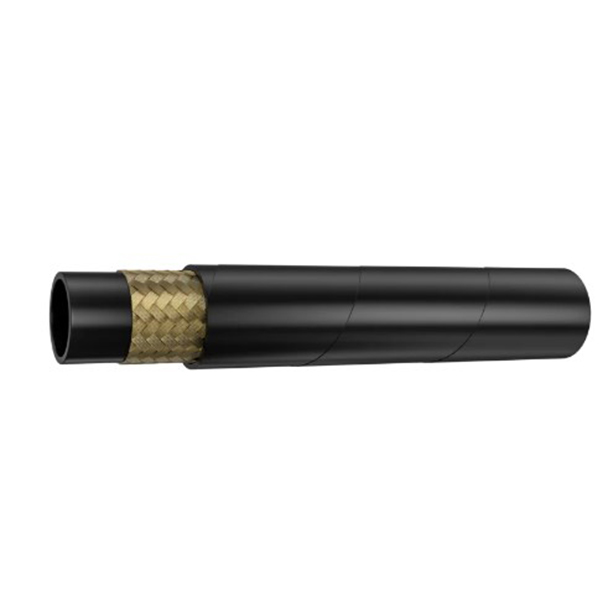

Inner Tube: Synthetic rubber with oil resistance, black color Reinforcement Layer: Single layer of high-strength braided steel wire Outer Cover: Synthetic rubber with oil, weather, abrasion, and corrosion resistance, black color Surface: wrapped or smooth surface Temperature Range: -40℃ – +100℃ Product Description SAE 100 R1 reinforced hydraulic hose is widely employed for medium-pressure hydraulic systems. It can work under higher pressure compared to other rubber hoses owing to its high tensile braided steel wire reinforcement. The hose comprises the inner tube, reinforcement, and outer cover. The tube is made from synthetic rubber with excellent oil resistance features, which allows the hose to deliver oils or fluids more effectively. The reinforcement layer comprises one single layer with high-tensile braided steel wire. It makes the hose work well in high-pressure applications. The outer cover is made from rigid synthetic rubber, which keeps the hose resistant to weather, aging, abrasion, corrosion, etc. Features And Benefits Oil, weather, corrosion, and abrasion resistant Broad temperature ranges from -40°C to +100°C A highly flexible and solid structure delivers a longer service life Hydraulic Rubber Hose Application It is suitable for various low-medium pressure hydraulic applications. Such as hydraulic engines, mine hydraulic support, forklift truck, oilfield exploitation equipment, and mine, road, and construction machinery. Technical Data Sheet

DN	Hose ID		Wire O.D	Hose O.D	Max.Working Pressure		Min.Burst Pressure		Min. Bend Radius
	inch	mm	mm	mm	Mpa	Psi	Mpa	Psi	mm
5	3/16″	4.8	9.5	11.8	25.0	3625	100.0	14500	90
6	1/4″	6.4	11.1	13.4	22.5	3270	90.0	13050	100
8	5/16″	7.9	12.7	15.0	21.5	3120	86.0	12470	115
10	3/8″	9.5	15.1	17.4	18.0	2610	72.0	10440	125
13	1/2″	12.7	18.3	20.6	16.0	2320	64.0	9280	180
16	5/8″	15.9	21.4	23.7	13.0	1890	52.0	7540	205
19	3/4″	19.0	25.4	27.7	10.5	1530	42.0	6090	240
25	1″	25.4	33.3	35.6	8.8	1280	35.0	5070	300
32	1 1/4″	31.8	40.5	43.5	6.3	920	25.0	3600	420
38	1 1/2″	38.1	46.8	50.6	5.0	725	20.0	2900	500
51	2″	50.8	60.2	64.0	4.0	580	16.0	2320	630
