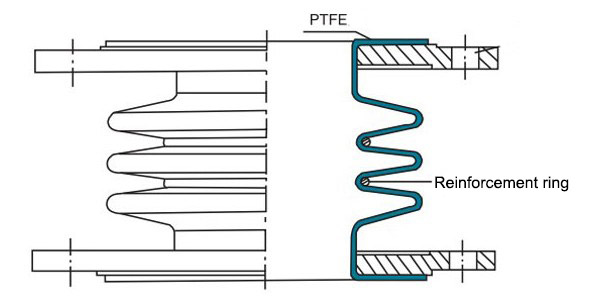

Structural Features

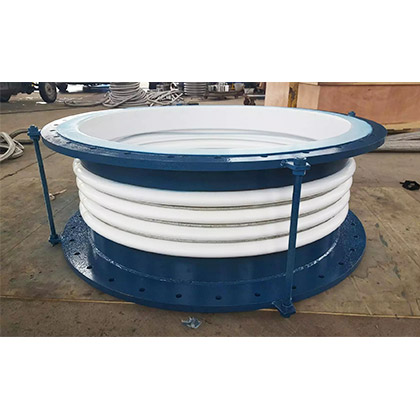

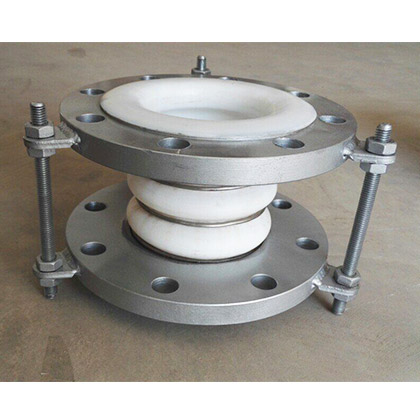

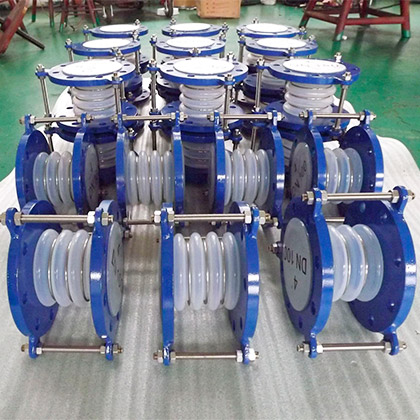

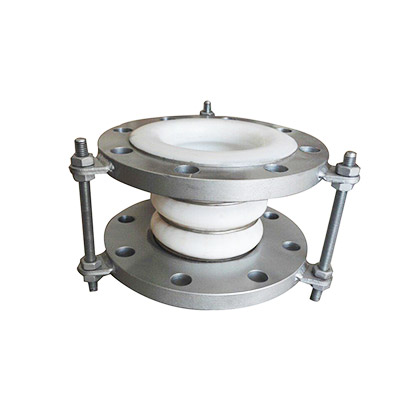

The outer body is teflon/PTFE bellows, lined with Teflon/PTFE. It can withstand various concentrations of acid, alkali, and salt, It is used to compensate the displacement and installation deviation of thermal expansion and contraction in the pipeline system of strong corrosive medium, and reduce the vibration of the pipeline system.
● Material of Bellows: Teflon/PTFE
● Material of Liner: Teflon/PTFE
● Nominal Diameter: DN25-DN600
● Working Pressure: -0.01Mpa-1.6Mpa
● Working Temperature: -50～150℃
● Connection: Flange connections
● Material of Connection: Carbon steel/stainless steel
● Notes: If you have any other requirement, please contact us.
