Structural Features

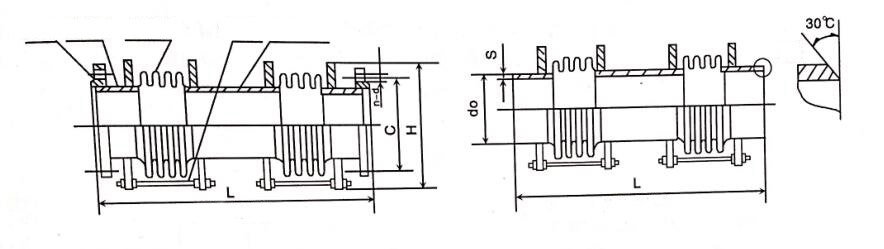

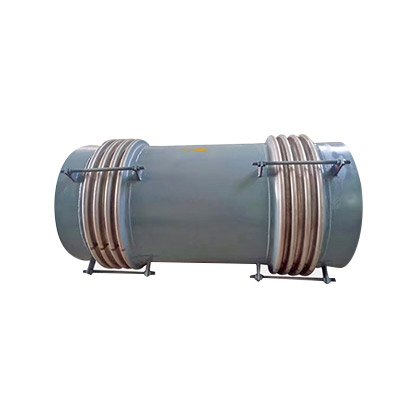

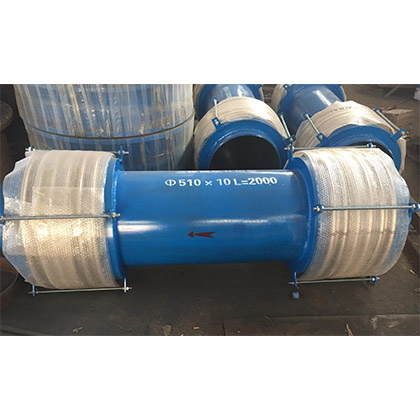

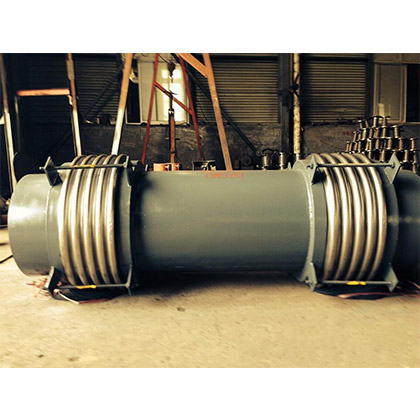

The small tie rod lateral expansion joint is composed of two sections of bellows, intermediate pipe and small tie rod with limited nut. It adopts multi-layer one-time hydraulic forming process, so that the product has the advantages of large compensation, good product performance, and long service life. It can compensate the shaft The resultant displacement in direction, angle, lateral and all directions.
The small tie rod lateral bellows compensator belongs to a kind of compensation element, which can compensate the transverse displacement and angular displacement of the curved pipe. Utilize the expansion and contraction of the bellows of its working body to absorb the dimensional changes caused by thermal expansion and contraction of pipelines, conduits, containers, etc., or to compensate for the axial, lateral and angular displacement of pipelines, conduits, containers, etc. It can also be used to reduce noise and vibration. The tie rod cannot withstand the internal pressure thrust.
● Material of Bellows: SUS 304(SUS 321 and SUS316L are also available)
● Nominal Diameter: DN100-DN5000
● Working Pressure: 0.1Mpa-2.5Mpa
● Working Temperature: -80℃/+450℃
● Connection: Flange connections or pipe end connection
● Material of Connection: Carbon steel
● Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available)
● Notes: If you have any other requirement, please contact us.
