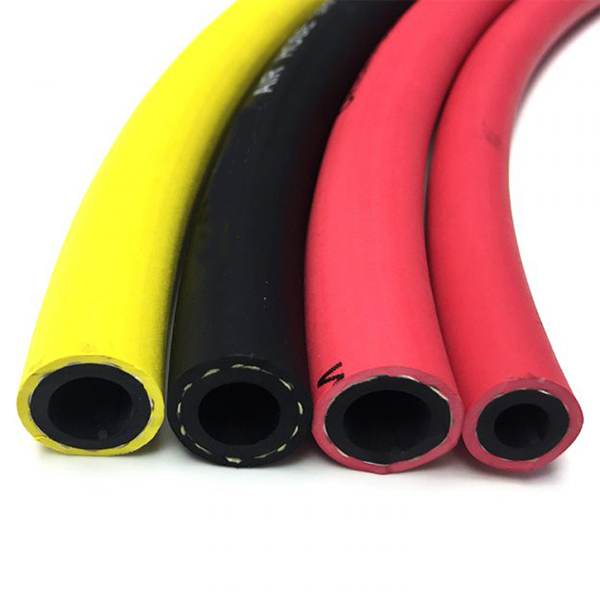

Application: For conveying compressed air and inert gases at room temperature.
Feature: It is made of excellent gas proof rubber with inner material made of knitted fashioned fabric. The body is hard and can be subjected to high pressure.
Specifications
|
ID |
OD |
Working Pressure |
Burst Pressure |
Bend Radius |
Weight |
Length |
||||
|
mm |
inch |
mm |
inch |
Psi |
Bar |
Psi |
Bar |
Mm |
Kg/M |
Meters |
|
6 |
1/4 |
14 |
0.55 |
225 |
15 |
675 |
45 |
50 |
0.15 |
100 |
|
8 |
5/16 |
16 |
0.63 |
225 |
15 |
675 |
45 |
90 |
0.17 |
100 |
|
10 |
3/8 |
17 |
0.7 |
225 |
15 |
675 |
45 |
130 |
0.25 |
100 |
|
19 |
3/4 |
29 |
1.1 |
225 |
15 |
675 |
45 |
240 |
0.6 |
100 |
|
22 |
7/8 |
34 |
1.34 |
225 |
15 |
675 |
45 |
280 |
0.68 |
100 |
|
25 |
1 |
35 |
1.4 |
225 |
15 |
675 |
45 |
375 |
0.93 |
100 |
|
32 |
1-1/4 |
42 |
1.7 |
225 |
15 |
675 |
45 |
420 |
1.25 |
60 |
|
38 |
1-1/2 |
53 |
2.1 |
150 |
10 |
450 |
30 |
500 |
1.47 |
60 |
|
45 |
1-3/4 |
60 |
2.36 |
150 |
10 |
450 |
30 |
630 |
1.76 |
60 |
|
51 |
2 |
65 |
2.56 |
150 |
10 |
450 |
30 |
630 |
1.92 |
60 |
|
57 |
2-1/4 |
74 |
2.92 |
150 |
10 |
450 |
30 |
855 |
2.11 |
60 |
|
64 |
2-1/2 |
82 |
3.23 |
150 |
10 |
450 |
30 |
960 |
2.56 |
60 |
|
76 |
3 |
94 |
3.7 |
150 |
10 |
450 |
30 |
1140 |
2.96 |
60 |
|
90 |
3-1/2 |
108 |
4.25 |
150 |
10 |
450 |
30 |
1350 |
3.68 |
60 |
|
102 |
4 |
122 |
4.8 |
150 |
10 |
450 |
30 |
1530 |
4.22 |
60 |
