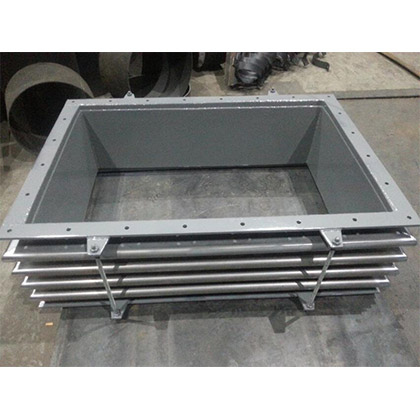

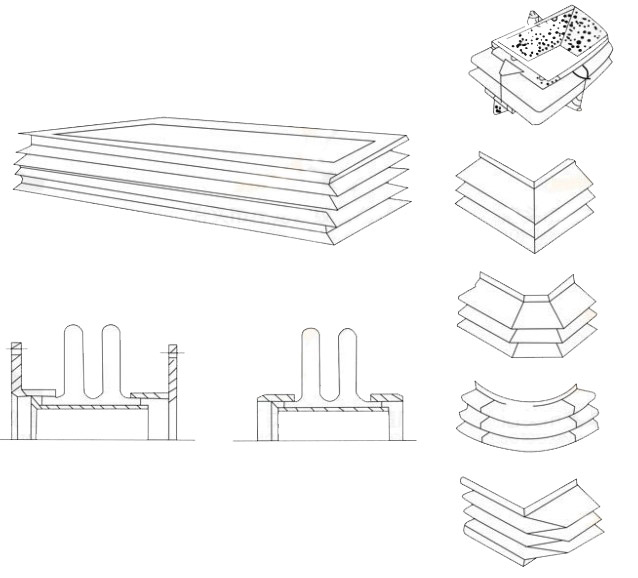

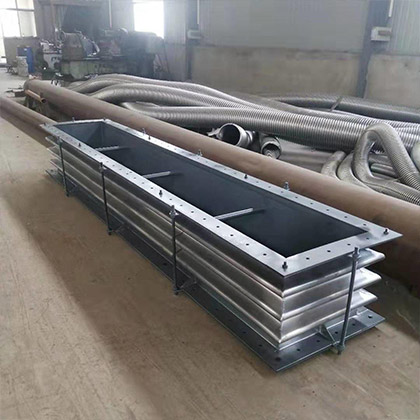

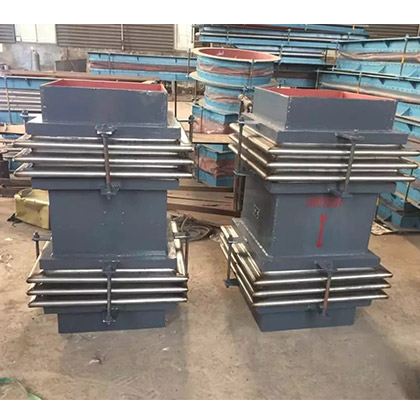

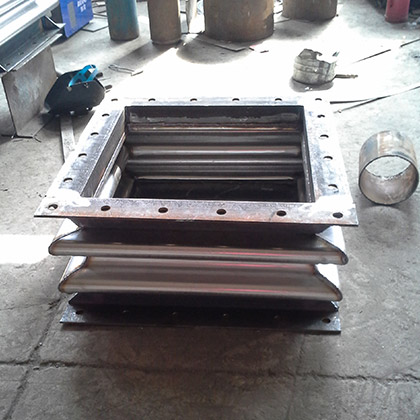

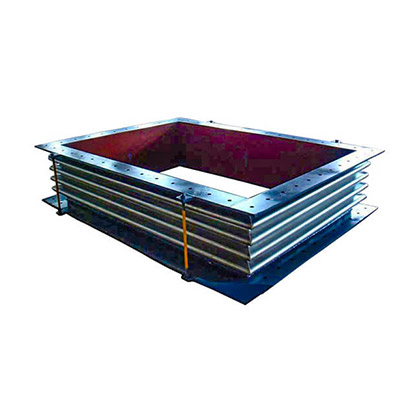

Structural Features Rectangular expansion joints have axial, lateral and angular compensation functions, and are suitable for smoke, wind, dust removal and fan ducts in power plants, steel plants, coking, cement and other industries. The rectangular corrugated compensator uses a deflector to prevent the scouring medium from entering the corrugated pipe

● Material of Bellows: SUS 304(SUS 321 and SUS316L are also available) ● Nominal Diameter: DN1000-DN5000 ● Working Pressure: 0.01Mpa-0.25Mpa ● Working Temperature: -80℃/+450℃ ● Connection: Flange connections or pipe end connection ● Material of Connection: Carbon steel ● Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available) ● Notes: If you have any other requirement, please contact us.
