Structural Features

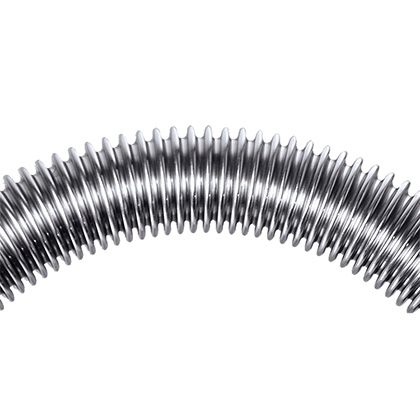

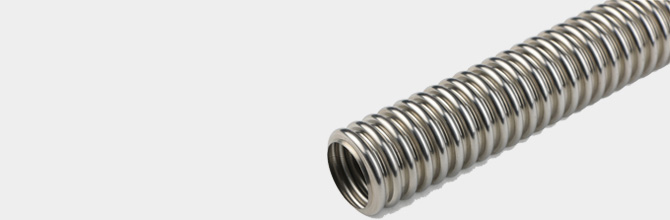

KB type bellows are manufactured by machinery spinning continuously. They have high performance in pressure resistant and large heat-bearing area and are available to variety of fittings.
|
Diameter |
Dimension |
Tolerance |
Mini. bend radius |
Nominal pressure |
Approximate weight |
||
|
DN |
Inch |

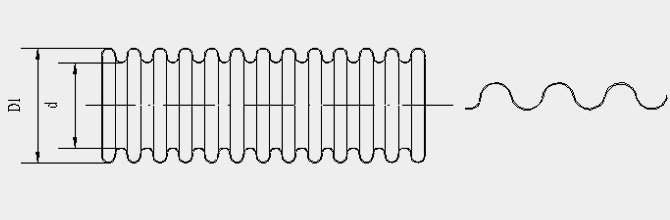

d |
D1 |
mm |
mm |
20℃ Mpa |
kg/m |
|
20 |
3/4 |
20.5 |
26 |
±0.25 |
30 |
1 |
0.305 |
|
25 |
1 |
25.6 |
31.7 |
±0.3 |
35 |
1 |
0.382 |
|
32 |
1 1/4 |
34.6 |
41.1 |
±0.3 |
40 |
0.4 |
0.553 |
|
40 |
1 1/2 |
40.7 |
49.5 |
±0.3 |
50 |
0.35 |
0.8 |
◆Manufactured based on ISO10380 and GB/T14525-2010.
◆Materials of hose body— SUS304, SUS321, SUS316L.
◆Notes: If you have any other requirement, please contact us.
