Structural Features

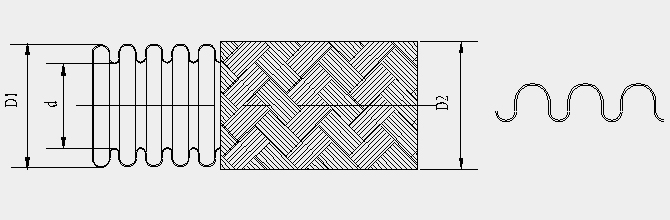

JB type bellows are manufactured by machinery spinning continuously in forming of annular corrugation or U-shape annular corrugation. They have good flexibility and pressure resistant and are available to variety of fittings.
|
Diameter |
Dimension |
Frequent bending radius |
Statistic bending radius |
Operating pressure |
Weight |
Length |
||
|
DN |
Inch |
d |
D1 |
mm |
mm |
20℃ Mpa |
kg/m |
m |
|
6 |
1/4 |
6.1 |
9.6 |
80 |
16 |
2.0 |
0.07 |
10-100 |
|
8 |
5/16 |
8.4 |
12.2 |
124 |
20 |
1.7 |
0.09 |
|
|
10 |
3/8 |
10.1 |
14.2 |
130 |
23 |
1.3 |
0.097 |
|
|
12 |
1/2 |
12.3 |
16.8 |
140 |
28 |
0.9 |
0.11 |
|
|
16 |
5/8 |
16.3 |
21.8 |
160 |
35 |
0.7 |
0.18 |
|
|
20 |
3/4 |
20.3 |
26.6 |
170 |
43 |
0.4 |
0.25 |
|
|
25 |
1 |
25.4 |
32.3 |
190 |
51 |
0.3 |
0.38 |
|
|
32 |
1 1/4 |
34.1 |
41.1 |
260 |
65 |
0.25 |
0.51 |
|
|
40 |
1 1/2 |
40 |
49.5 |
300 |
78 |
0.25 |
0.69 |
|
|
50 |
2 |
50.5 |
60.5 |
320 |
95 |
0.16 |
0.86 |
|
◆Manufactured based on ISO10380 and GB/T14525-2010
◆Materials of hose body— SUS304, SUS321, SUS316L
◆Materials of braiding— SUS304
◆Notes: If you have any other requirement, please contact us.
