Structural Features

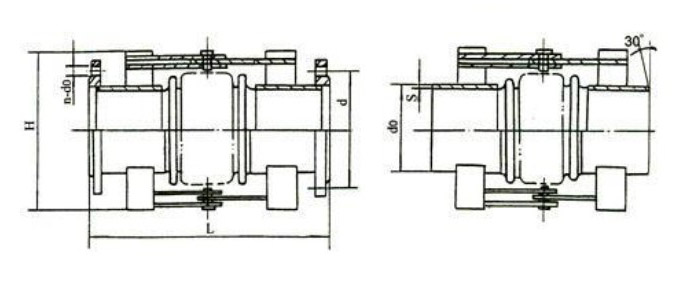

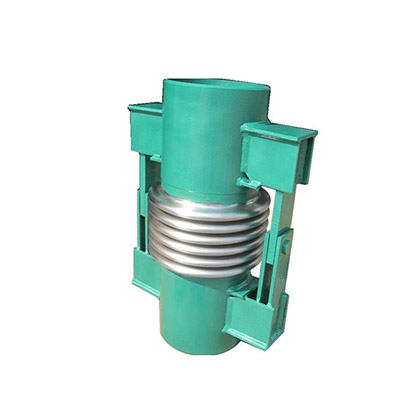

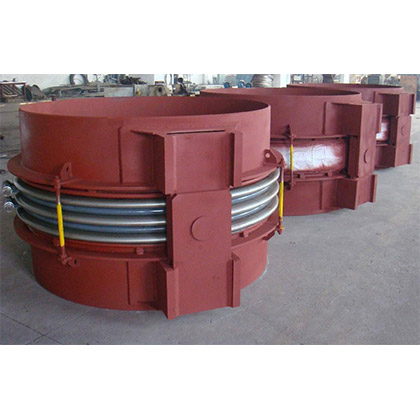

The hinge expansion joint is composed of a connecting pipe, a bellows, and a pair of hinges connected by the connecting pipe. It can only absorb the angular displacement of a single plane. Two or three angular expansion joints should be used in combination when absorbing displacement. The hinge of the compensator has the ability to withstand internal pressure thrust.
● Material of Bellows: SUS 304(SUS 321 and SUS316L are also available)
● Nominal Diameter: DN65-DN5000
● Working Pressure: 0.1Mpa-2.5Mpa
● Working Temperature: -80℃/+450℃
● Connection: Flange connections or pipe end connection
● Material of Connection: Carbon steel
● Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available)
● Notes: If you have any other requirement, please contact us.
