Product information of metal hose
Temperature: -20 ~+400
Hose material: SS304/SS316L/SS321
Braided mesh material: SS304
Connector: Flange
Flange material: stainless steel/carbon steel
Flange standard: ANSI/DIN/EN/BS/JIS/GOST
Length: as request
Application of flexible metal hose
Iron and steel industry, oil and gas power plant, chemical industry, refrigeration and heating system, food industry, automobile industry, paper mill, marine industry, national defense industry, etc.
Specification List of stainless steel hose
| nominal diameter (mm) | I.D.(mm) | O.D.(mm) | Min bending radius (mm) | max working pressure (Mpa) | |||
| Corrugated pipe | With one layer braid | static | dynamic | one layer braid | two layers braid | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 15 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 15 | 20 |
| 20 | 20 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 5.0 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 4.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.6 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |

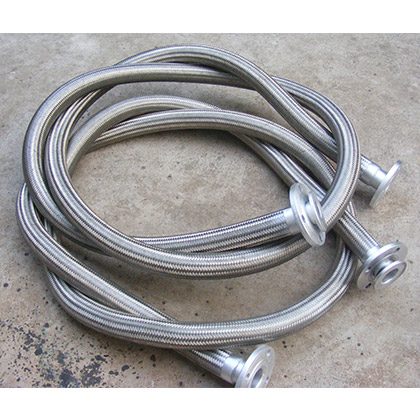

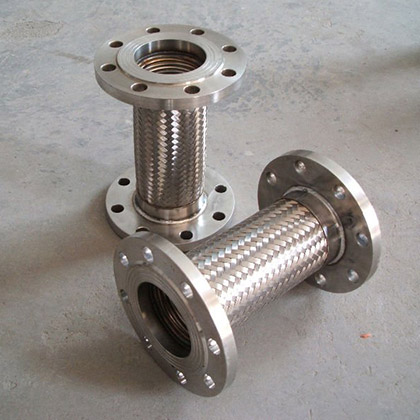

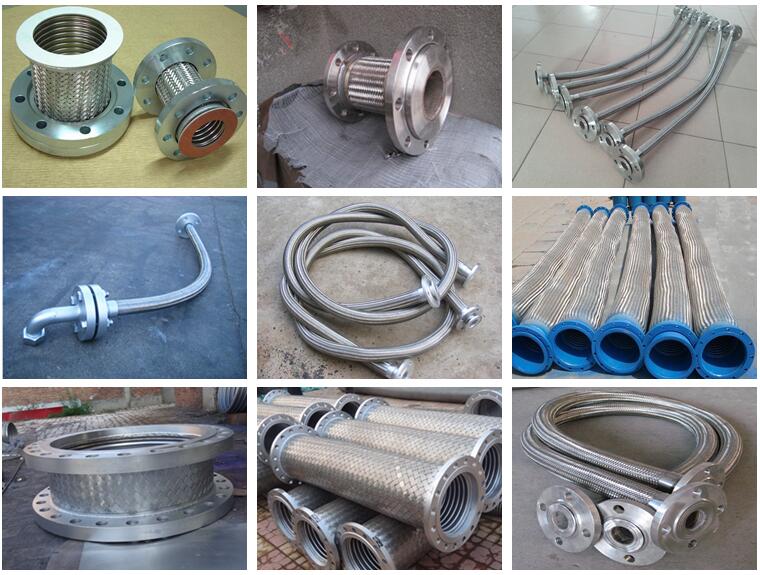

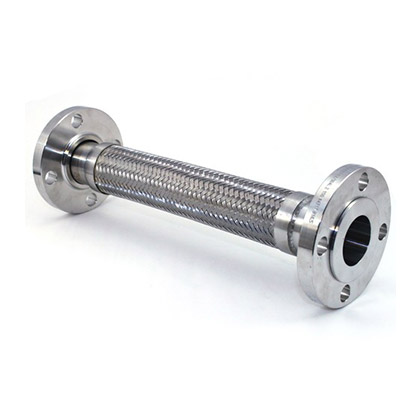

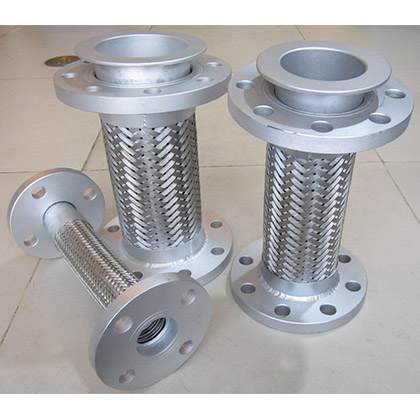

Product Displace of metal braided hose:
