Structural Features

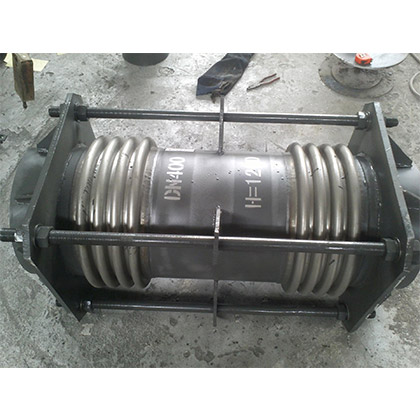

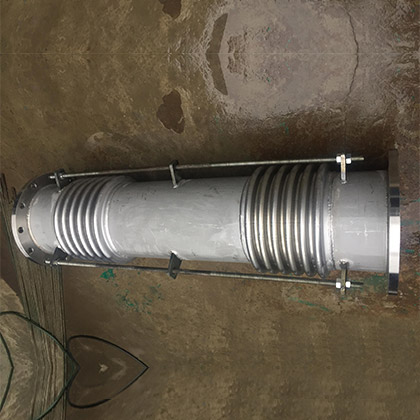

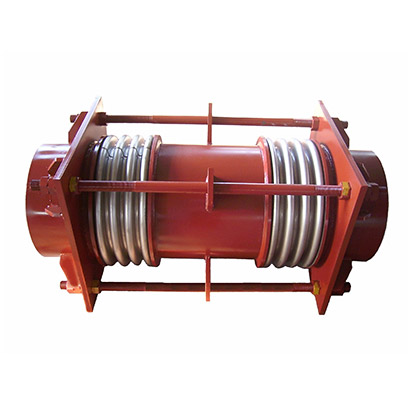

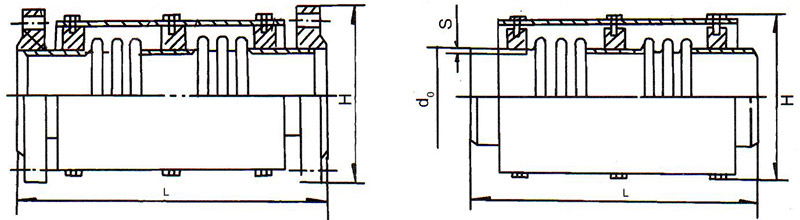

The axial type compound tie rod expansion joint is composed of two or three sections of bellows, short and middle indirect tubes and long tie rods. The long tie rod is not a load-bearing member, with simple structure and large compensation. It is generally used for low fatigue times and requires a large amount of compensation. Compensation amount of pipeline.
● Material of Bellows: SUS 304(SUS 321 and SUS316L are also available)
● Nominal Diameter: DN32-DN3000
● Working Pressure: 0.1Mpa-2.5Mpa
● Working Temperature: -80℃/+450℃
● Connection: Flange connections or pipe end connection
● Material of Connection: Carbon steel
● Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available)
● Notes: If you have any other requirement, please contact us.
